Krauss Maffei KM200-1200 B1

For More Details or Purchasing Information Call 01992 478 881

Description and Images:

Krauss Maffei 1200 B1/200
Year of Manufacture 1994
Clambing Force  200 tonnes
Screw Diameter  60mm
Shot Weight (in PS) 610 grams
Calculated Injection Volume 678 cm3
Injection Pressure  1778 bar
Platens sizes  830 x 770mm (hxv)
Distance Between Tie Bars 560 x 500mm (hxv)
Min Mould Height  280mm
Max Mould Opening Stroke 770mm
Max Daylight  1050mm
Ejector Stroke  200mm

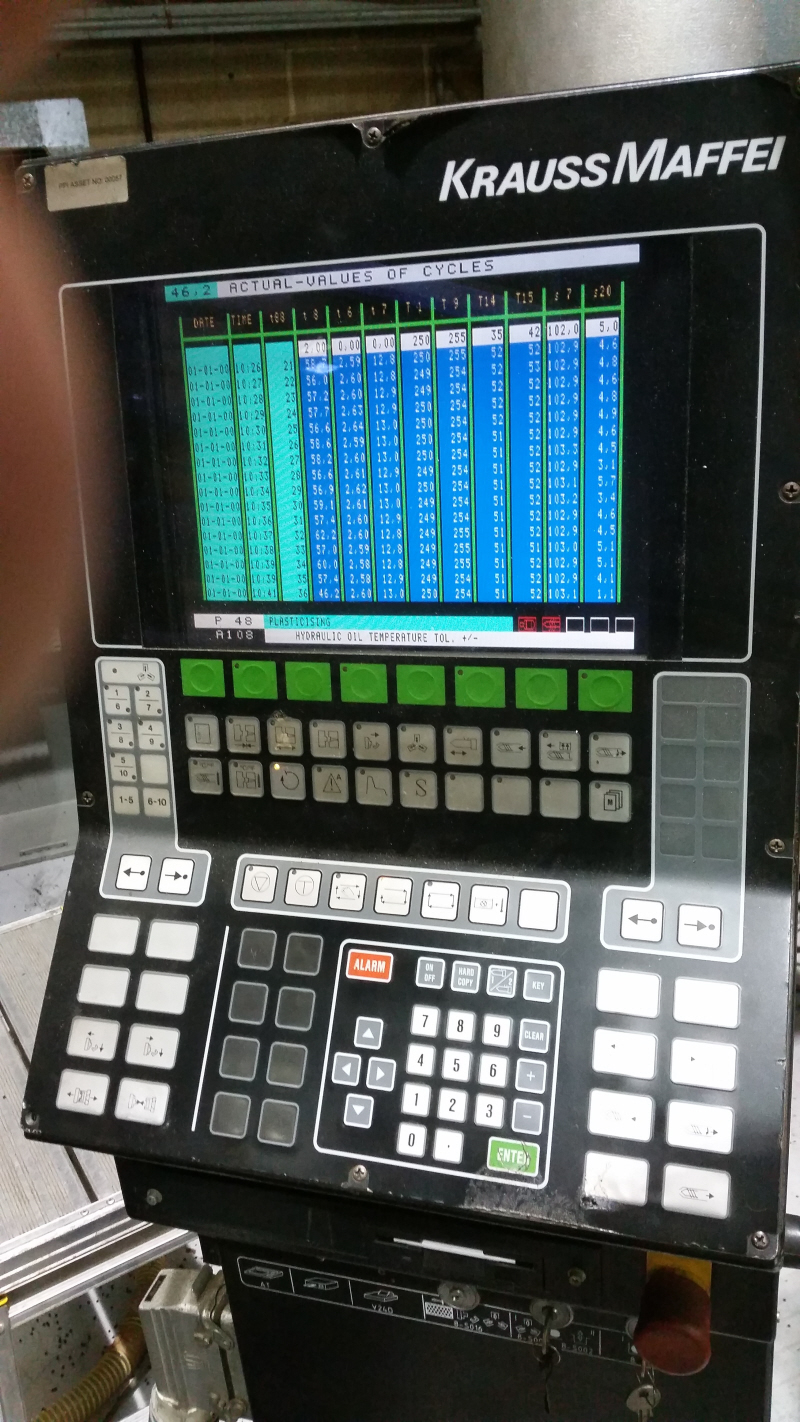

Controls  MC3
Core pulling  2
Air Circuit  1
Total Installed Power  118.4 Kw
Weight   11,100 Kgs
Oil filling  890 Litres
Robot  ATM (unlikely to be included)
Jenco Material Feeder – Not included
Can be inspected in operation/production

Our Location: Hoddesdon, Hertfordshire, United Kingdom

Preview inspection: By prior appointment
