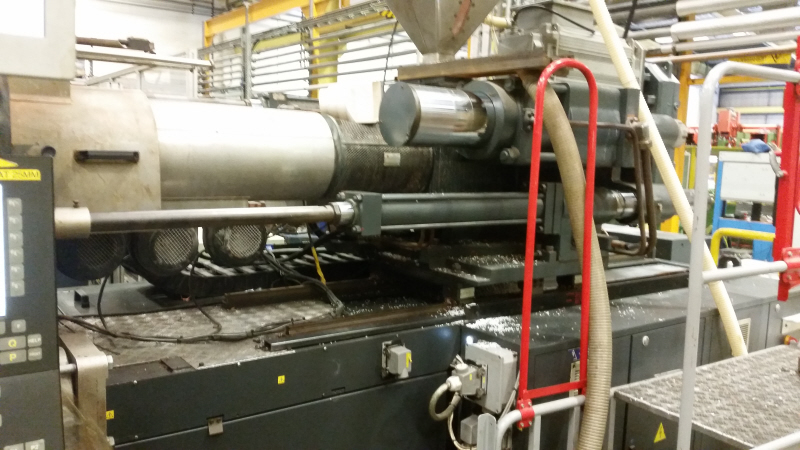

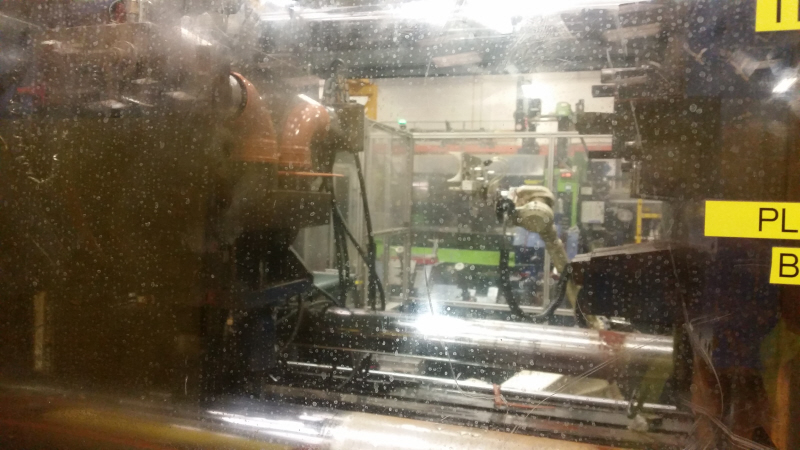

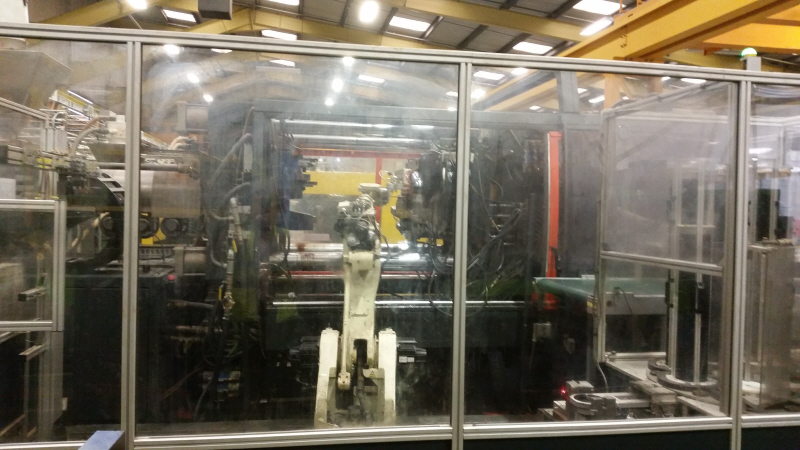

Sandretto Series 9 500/4170, 500 Tonnes

For More Details or Purchasing Information Call 01992 478 881

Description and Images:

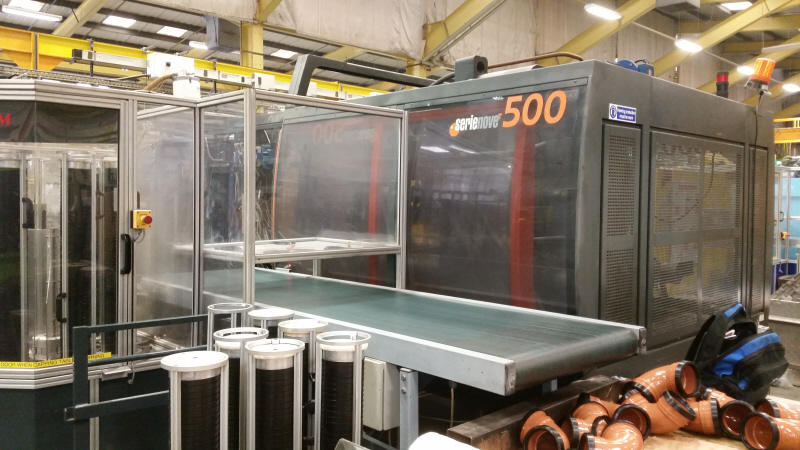

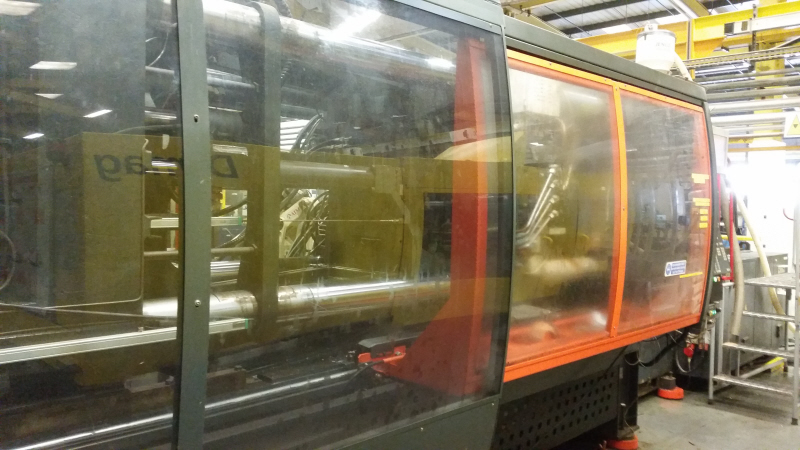

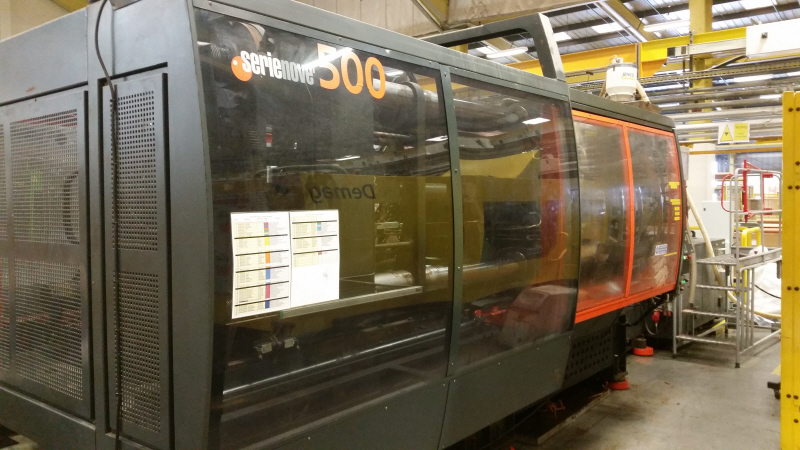

Sandretto Series 9, 4170/500
Year of Manufacture 2006-7
Clamping Force 500 Tonnes

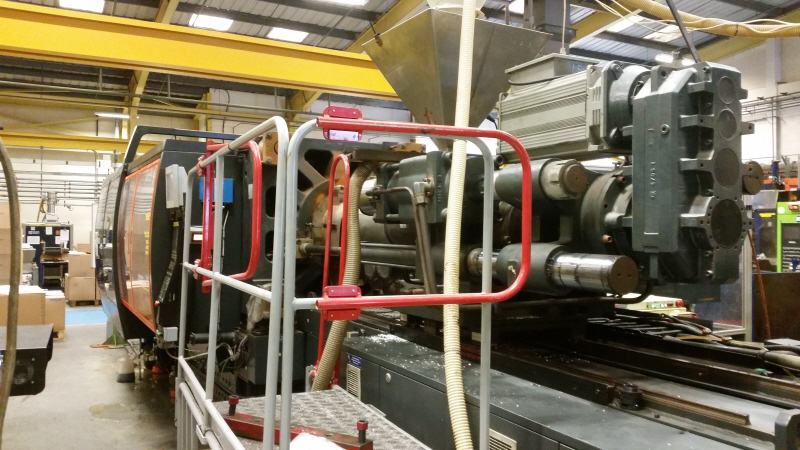

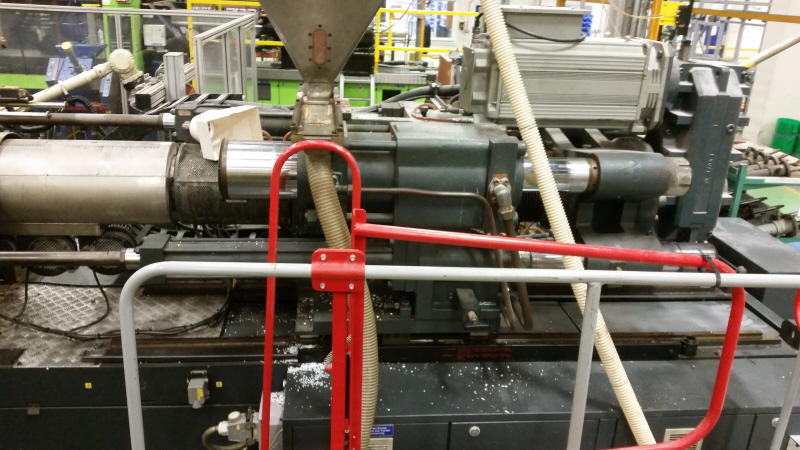

Screw Diameter 80mm
Injection Volume 2056 cm3
Injection Pressure 2027 bar
Platen Sizes 1300 x 1300 mm
Distance Between Tie Bars 900 x 900 mm
Tie Bar Diameter  150mm
Min Mould Height  300mm
Max Mould Height 1000mm
Moving Platen Stroke 950mm
Ejector Stroke 380mm
Core Pulling 5
Air Circuit    2

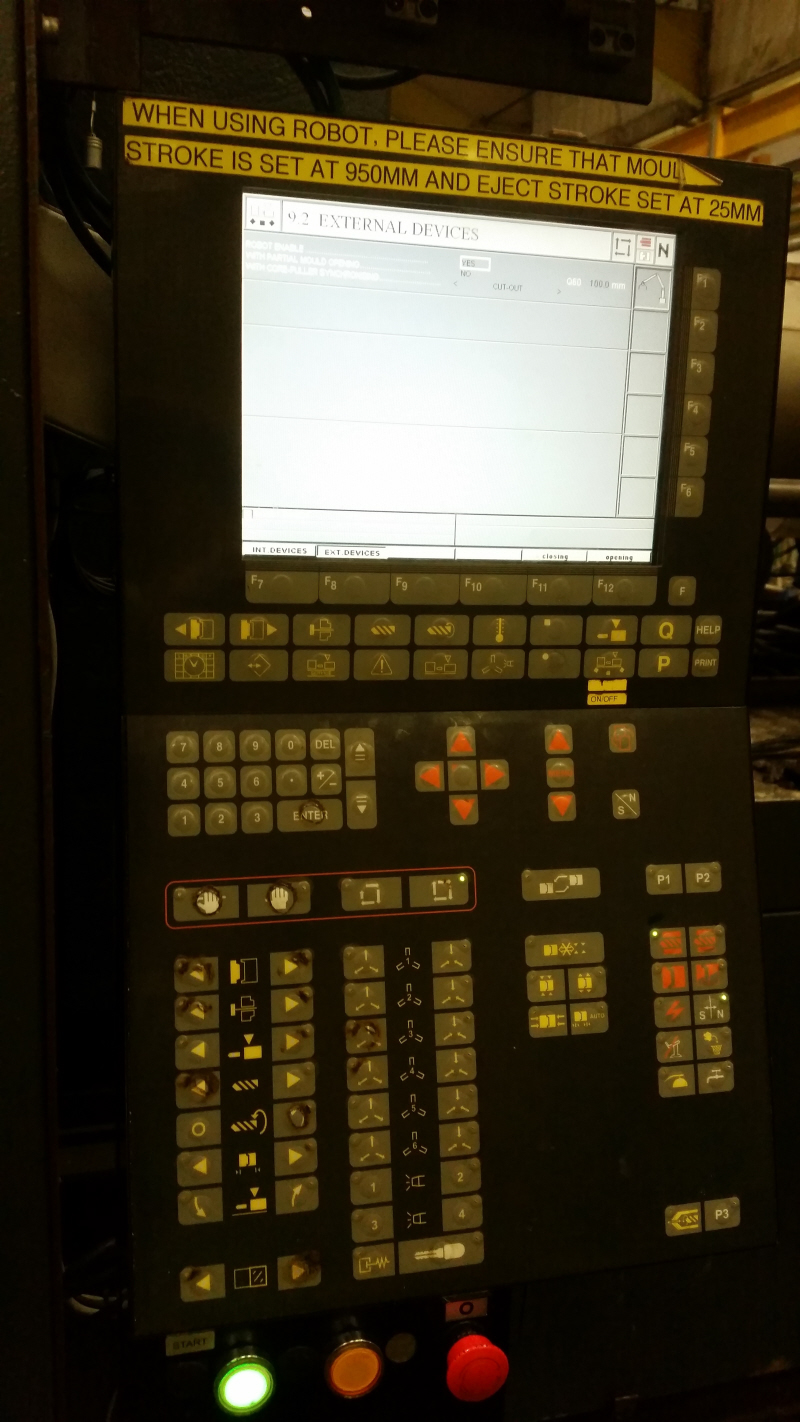

Controls CEF 2000
Total Installed Power 161,5 Kw
Oil Filling  900 Litres
Dimensions 8520x2660x2165 mm
Weight  21,000Kg (in total, for transport in two pieces)
Can be inspected in operation/production

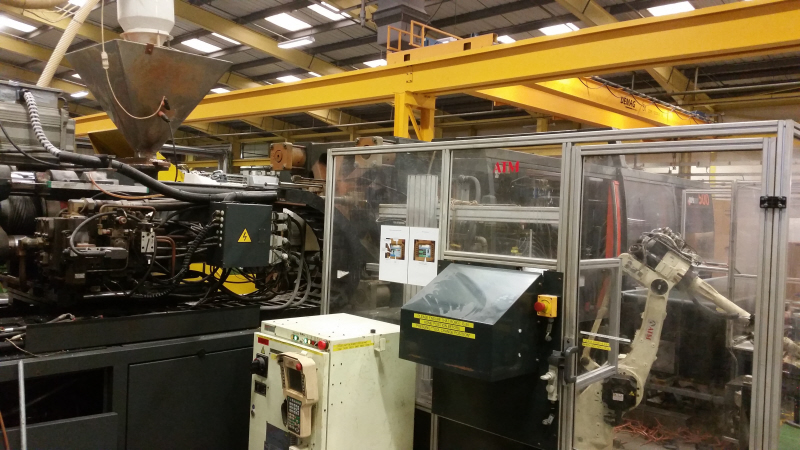

Robot Not included

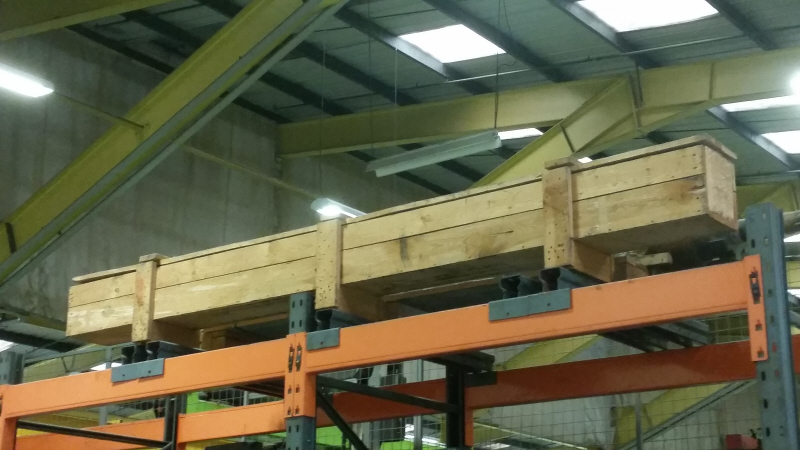

Spare Screw & Barrel
SOLD, to request for a similar machine please contact us

Our Location: Hoddesdon, Hertfordshire, United Kingdom

Preview inspection: By prior appointment
