Engel E-Motion 55 Tonnes, Electric

For More Details or Purchasing Information Call 01992 478 881

Description and Images:

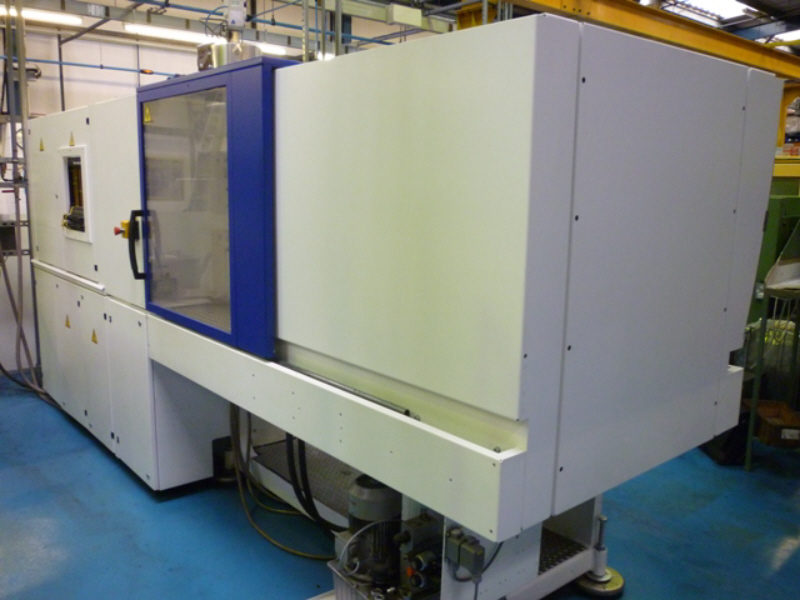

Engel e-motion EM 55 all-electric
Year of manufacture 2007
Clamp force 55 tonnes
Screw diameter 22 mm
Shot weight 32 grs in PS

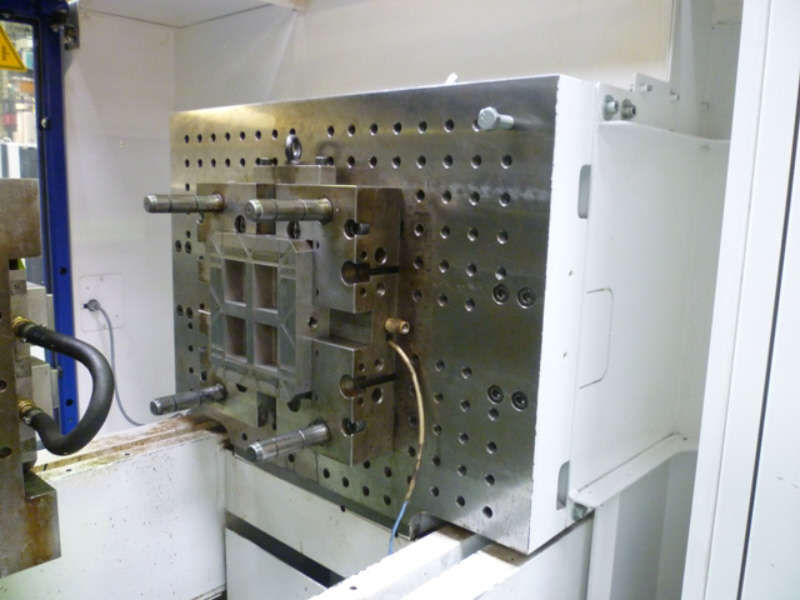

Platen size (hxv) 620 x 500 mm
Distance between tie bars Tie Bar Less
Min-max mould height 150 – 350 mm
Opening stroke 270 mm
Max mould weight 450 Kg

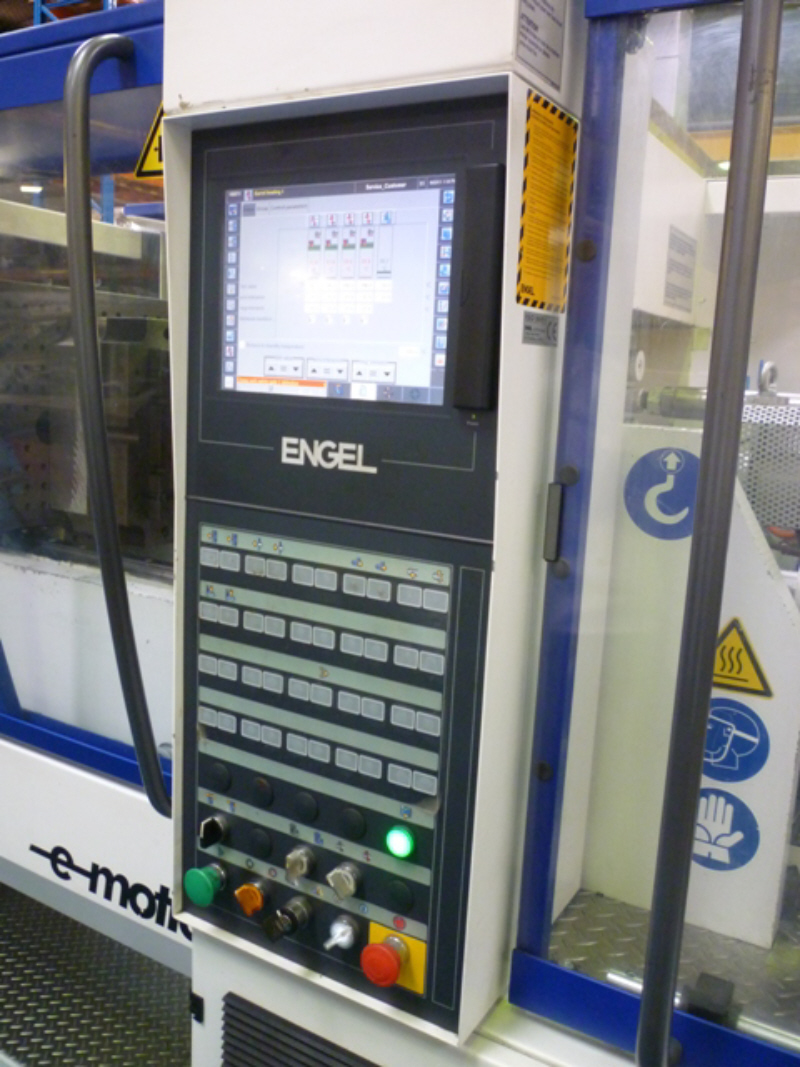

Controls CC 200 touch screen control system
Total power 26 Kw
Ejector stroke 100 mm
Core pulling 1

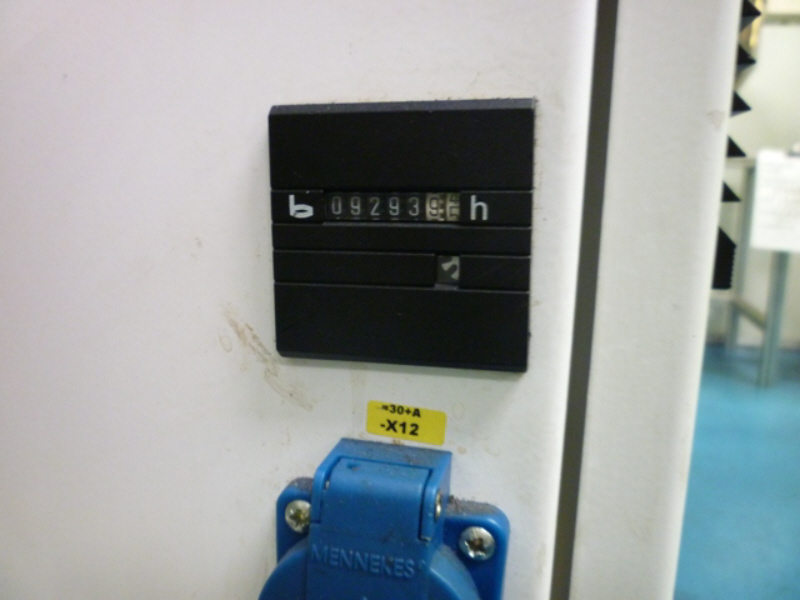

Operating hours 12,500
This all-electric machine has many additional extras (Hydraulic power pack for single core pull, daylight increased by 200 mm, ‘X-melt hardware package’ and nickel-based bi-metallic barrel)
It can be inspected in operation
SOLD, to enquire for a similar machine please contact us

Our Location: Hoddesdon, Hertfordshire, United Kingdom

Preview inspection: By prior appointment
